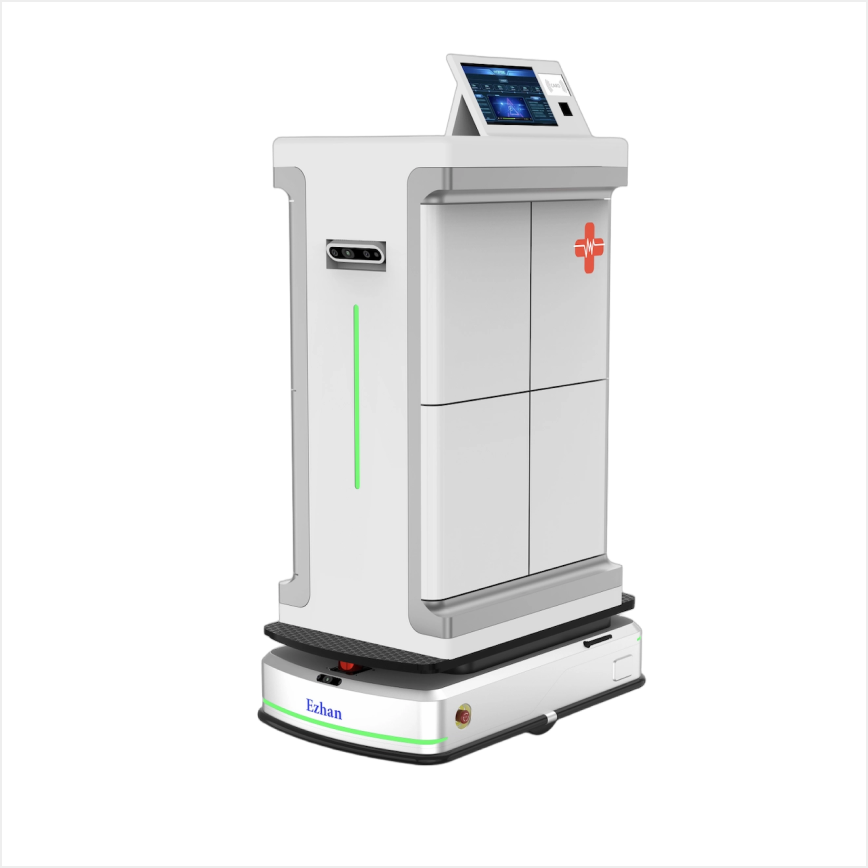

Hospital Specimen Delivery AMR

The Specimen Delivery Robot is an intelligent transportation device designed for the entire medical testing workflow, with "precision temperature control + sample protection against damage + compliant traceability" as its core competitiveness. It is specifically engineered to undertake the automated circulation of various specimens-including blood, urine, cerebrospinal fluid, and tissue sections-across hospital clinical laboratories, wards, operating rooms, pathology departments, and other scenarios. This robot directly addresses industry pain points in manual delivery, such as specimens' vulnerability to environmental factors, unstable transportation timeliness, and unclear responsibility traceability.

Adopting a dual-fusion solution of laser SLAM and visual navigation, combined with a multi-sensor collaborative obstacle avoidance system, it flexibly navigates complex hospital environments like crowded corridors and narrow passages. It autonomously summons elevators and gains access through security gates, enabling "zero-contact" direct delivery of specimens from collection points to laboratories. The cabin features a fully sealed structure that isolates external pollution sources, comprehensively safeguarding specimen integrity and testing accuracy.

Deeply integrated with hospital LIS/HIS systems, it supports one-click entry of specimen information, intelligent dispatch of transportation orders, and real-time visual tracking of trajectories. Medical staff can complete receipt confirmation by scanning a QR code via a dedicated terminal, forming a closed-loop management covering the entire "collection - transportation - sign-off - archiving" process. All transportation data is uploaded to cloud servers in real time, meeting the strict compliance requirements for specimen management in the medical industry. Capable of 24/7 uninterrupted operation, the device significantly shortens specimen turnover cycles, reduces waiting time for test reports, and frees up medical staff from non-clinical tasks-providing core logistics support for the standardization and intelligent upgrading of testing processes in smart hospitals.

	Ezhan - Customized Product Series
Product model
Basic parameters	Product name	Hospital Specimen Delivery AMR
	Navigation	Laser SLAM
	Drive form	Dual wheel differential
	Length*Width*Height	930*530*1510mm
	Rotation diameter	1070mm
	Weight (including battery)	200kg
	Maximum load	200kg
	Chassis ground clearance	25mm
	Maximum lifting stroke	60mm
	Ambient temperature and humidity range	Temperature: 0℃~45℃ / Humidity: 10%~90%, no compression and condensation
Performance parameters	Passability (slope/step/gap)	≤3°/ 5 mm / 20 mm
	Navigation position accuracy	±5mm
	Navigation angle accuracy	±1°
	Navigation speed	1.4m/s
Battery parameters	Battery Type	Lithium iron phosphate
	Battery specifications	48V/25Ah
	Battery endurance	>8H
	Charging form	Automatic/Manual
	Charging time	<1.5H
	Battery cycle life	≥1500 Times
