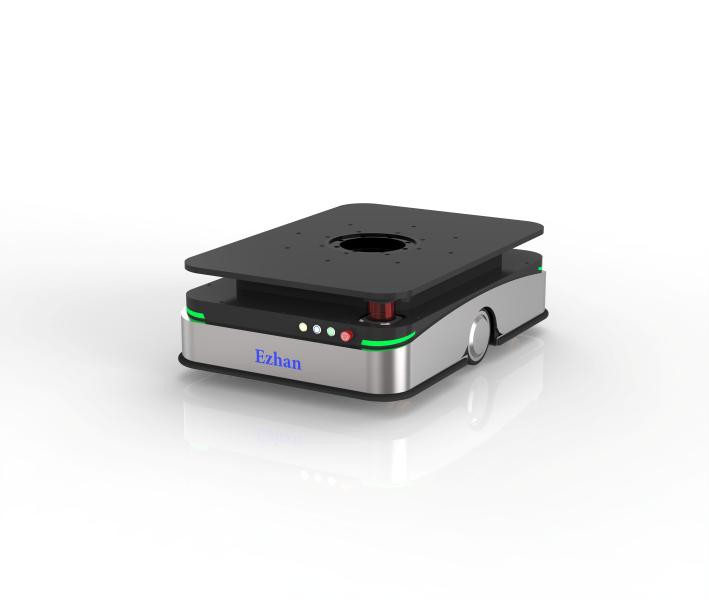

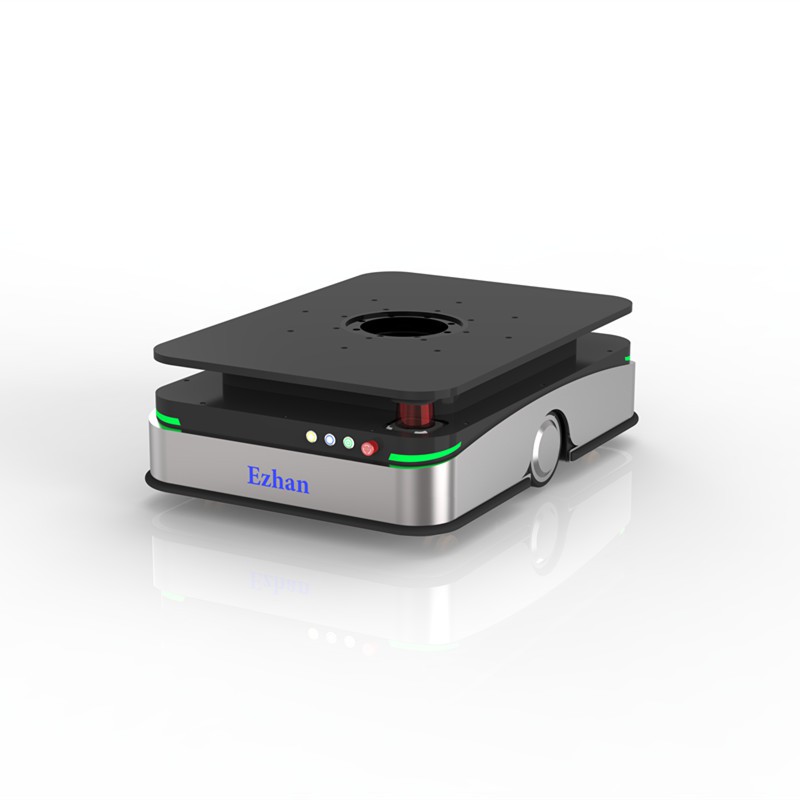

SMT Material Delivery AMR
An automated material handling solution specifically designed for SMT electronic manufacturing scenarios. It replaces manual labor to complete the grabbing, transporting, loading and unloading of materials such as PCB boards, component trays, and carriers, addressing the industry pain points of low efficiency, high error rates, and high costs associated with traditional manual work, and helping enterprises quickly achieve intelligent manufacturing upgrading.
Core Advantages
Efficient Production Capacity Leap, Cost Reduction of Over 30%
Operating speed up to 1.2 meters per second, with one single unit replacing 1-2 workers
Supports 24/7 uninterrupted operation, directly increasing production line capacity by over 40%
Reduces labor management costs, work-related injury risks, and losses caused by misoperations
Full-Scenario Compatibility, Seamless Integration
Compatible with material specifications: PCB boards (50×50mm-500×400mm), 8/12-inch component trays, and various carriers
Supports flexible switching between multiple workstations, adapting to small-batch and multi-variety production modes
Intelligent Adaptability, Minimal Operation and Maintenance
Touch screen + remote monitoring system for real-time monitoring of operating status
Industrial-Grade Stability, Safety and Compliance
Equipped with anti-collision sensors and emergency stop buttons, compliant with ISO/CE industrial safety standards
Application Scenarios
✅ Loading and unloading of SMT placement production lines
✅ Transfer of PCB assembly lines
✅ Warehousing and circulation of component trays
✅ Manufacturing of 3C products / automotive electronics / IoT devices
✅ Small-batch and multi-variety flexible production workshops
 |
Ezhan-Customized product series | |
| Product model |
|
|
| Basic parameters | Product name | SMT Material Delivery AMR |
| Navigation | QR Code/Laser SLAM | |
| Drive form | Dual wheel differential | |
| Length*Width*Height | 840*585*280mm | |
| Rotation diameter | 1050mm | |
| Weight (including battery) | 135kg | |
| Maximum load | 300kg | |
| Chassis ground clearance | 25mm | |
| Maximum lifting stroke | 60mm | |
| Ambient temperature and humidity range | Temperature: 0℃~45℃ / Humidity: 10%~90%, no compression and condensation | |
| Performance parameters | Passability (slope/step/gap) | ≤3°/ 5 mm / 20 mm |
| Navigation position accuracy | ±5mm | |
| Navigation angle accuracy | ±1° | |
| Navigation speed | 1.64m/s | |
| Battery parameters | Battery Type | Lithium iron phosphate |
| Battery specifications | 48V/25Ah | |
| Battery endurance | >8H | |
| Charging form | Automatic/Manual | |
| Battery replacement time | ＜1min | |
| Charging time | <1.5H | |
| Battery cycle life | ≥1500 Times | |
